Extra Diverse, Large, Multifunctional Rear Racks & Fully Integrated Battery Design

The sturdy, multifunctional rear rack carries cargo of all shapes and sizes. The integrated battery design helps maintain capacity and can reduce mechanical failures in even the most extreme weather conditions by up to 95%. Attention: Extra Rear Racks are not included in the box



750W Upgraded Brushless Geared Hub Motor

The Big Dog’s motor uses an updated and specialized inner ring, which enables high-temperature resistance and better heat dissipation. This inner ring reduces the motor magnets’ attenuation speed, which guarantees longer life expectancy for the motor, meaning your Himiway Big Dog will outlast the competition where it matters most—the power system. Big Dog’s brushless geared hub motor will help you conquer any obstacle in your chosen terrain.



48V 20Ah Samsung/LG Lithium-ion Battery

Himiway Big Dog combines the new Samsung/LG battery technology with a 5000mAh single cell capacity—smaller size but larger diversity. Compared with 3500mAh cells made of nickel, cobalt, and manganese, this 960Wh battery efficiently improves the range, stability, and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and over 80+ miles with pedal assist. The battery will maintain 80% capacity after 1000 charges.

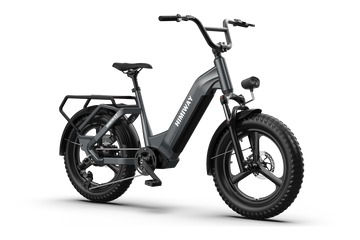

Himiway Big Dog

$1,999.00Price
  • Product Info

    Specification

    • Battery 48V 20Ah Samsung/LG lithium battery
    • Range 60–80miles
    • Hub Motor 750W brushless gear motor
    • Total Payload Capacity 400 lbs
    • Recommended Rider Heights5′3″ ~ 6′4″
    • Charger US standard 3.0 A smart charger
    • Controller 48V/22A
    • Display LCD display with USB charging
    • Weight 79 lb.
    • Pedal Assist Intelligent 0~5 level pedal assist

    Components

    • Tires 20″ x 4″ Kenda fat tires
    • Brake lever Aluminum alloy comfort grip levers with motor cutoff switch
    • Rear Light Integrated tail light
    • Freewheel Shimano 7 speed gear shift system
    • Brake180mm mechanical disc brakes
    • Chain KMC chain
    • Stem Promax MA-400 SSABK
    • Crank 170mm forged alloy
    • Gearing Shimano- 14-28T BROWN/BK
    • Front Fork Alloy front suspension fork with lockout and adjustment
    • Throttle Half twist throttle
    • Pedal Alloy pedal with reflectors
    • Bike Frame 6061 Aluminum frame
    • Front Light 48V LED light
    • Saddle SR saddle
    • Seat Post Diameter 30.9mm, length 300mm
    • Kickstand Heavy-duty aluminum
    • Spokes One whee
  • Shipping

    Shipping 3-7 days

  • Warranty

    All Himiway bikes are covered under our manufacturer’s 2-year, all-inclusive warranty for the original owner against all manufacturing defects (all free accessories are not covered by warranty service).
